This Article Attempts To Demonstrate How Powerful Is Test Driven Development & Consumer-Driven-Contract When There Is A Dependency On An Internal/External Service. If There Is A Mix Of Microservices And Nanoservices This Approach Really Boosts Developer Productivity To Produce Quality Testable Code.

Member-Function (Health Insurance Company) [Producer of the Contract]

Member-Function is a Spring Cloud Function. It provides coverage level for a given member Id.

This is the producing service which produces the service contract to check its member’s coverage type.

- Full Source Code is here

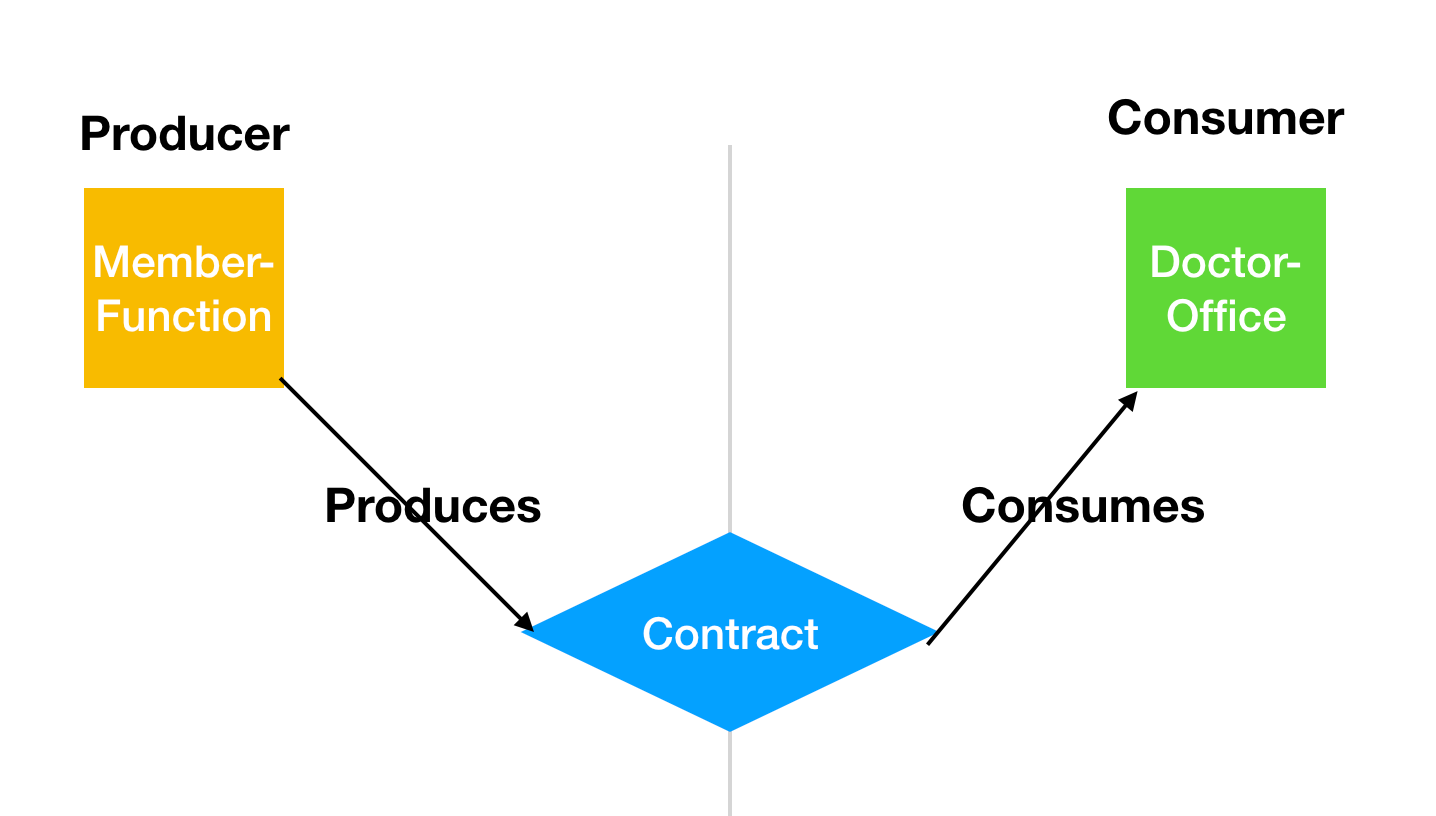

Consumer-Driven-Contract initiated from Producer side

In a Consumer-Driven-Contract the contract starts from consumer side. Here Doctor-Office is the consuming application and Health Insurance companies Member-Function app is the producing application.

But, it makes more sense if Health Insurance company publishes its contract out to all associated hospitals.New Paragraph

In this sample application, lets generate a service contract at Health Insurance application. Then, publish that contract out so that any doctor’s office (Hospital) would know how to check health insurance coverage.

Nanoservice - Member-Function (Contract Producer)

After considering all the design aspects Health Insurance check application is better suited to be developed as a Nanoservice, aka a serverless application.

For following reasons this can be a serverless app

• Its a simple check service.
• Used by various associated hospitals via different communication channels (Web, Messaging, events)
• Doesn’t need to be up and running all the time.
• No need to gauge the load and traffic.

Setup

Lets implement Health Insurance company’s Member-Function app using Spring Cloud Function. We need following dependencies in our pom.xml to start with.

Serverless apps are invoked by events via various channels. Lets choose Web channel to keep it simple. We need spring-cloud-starter-function-web. This starter BOM provides Function implementation also exposes the function as a REST web serivce.

<dependency>

<groupId>org.springframework.cloud</groupId>

<artifactId>spring-cloud-starter-function-web</artifactId>

</dependency>

Then, we need RestDocs dependency for generating doc snippets.New Paragraph

<dependency>

<groupId>org.springframework.restdocs</groupId>

<artifactId>spring-restdocs-mockmvc</artifactId>

<scope>test</scope>

</dependency>

And, we need ASCII Doc dependency to generate html out of doc snippets.

<dependency>

<groupId>org.springframework.restdocs</groupId>

  <artifactId>spring-restdocs-asciidoctor</artifactId>

</dependency>

To integrate Rest Docs with Cloud Contract we need following WireMock dependency.

<dependency>

<groupId>org.springframework.cloud</groupId>

  <artifactId>spring-cloud-contract-wiremock</artifactId>

  <scope>test</scope>

</dependency>

Spring-cloud-starter-contract-verifier BOM is needed if we are writing a DSL contract manually. We don’t need this here as we are not going to write DSL contract. Rest Docs auto generate the DSL contract for us.

Now, we need following plugin to assemble generated contract and stubs to publish out to consuming applications. To demonstrate, we install the stubs jar to local Maven repository.

<plugin>

<groupId>org.apache.maven.plugins</groupId>

<artifactId>maven-assembly-plugin</artifactId>

  <configuration>

<attach>true</attach>

<descriptors>

  <descriptor>${project.basedir}/src/assembly/stub.xml</descriptor>

  </descriptors>

  </configuration>

  <executions>

  <execution>

  <id>stub</id>

  <phase>prepare-package</phase>

<goals>

  <goal>single</goal>

  </goals>

  <inherited>false</inherited>

  </execution>

  </executions>

</plugin>

and the stub.xml which defines the assembly rules. Please refer the codebase for the stub.xml file.

We don’t need spring-cloud-contract-maven-plugin as we are not going to generate test-case out of DSL contract. Because, we are going to auto generate DSL from a test-case.

TDD

Lets start with a failing test-case. We use MockMvc to call the function which I am going to describe in a bit.

So, we invoke the function by passing in a HealthFirstMember object. Member ID is mandatory field and other fields are optional.

After invoking the Mock service we check if the coverage is MEDICAL to pass the test-case.

@Test

public void provideCoverageForGivenMemberId() throws Exception {

HealthFirstMember member = new HealthFirstMember();

member.setMemberId("123456789");

member.setCoverage(HealthFirstMember.Coverage.NONE);

MvcResult result = mockMvc.perform(post("/members")

.contentType(MediaType.APPLICATION_JSON_UTF8)

.content(json.write(member).getJson())

).andReturn();

mockMvc.perform(asyncDispatch(result))

.andExpect(status().isOk())

.andExpect(jsonPath("coverage").value("MEDICAL"))

}

We will revisit the test-case when we are ready to generate contracts and docs.

Member Function

In order to pass the test-case we need to real implementation of a Function. Following code snippet shows how this is implemented using Spring Cloud Function.

public static void main(String[] args) {

SpringApplication.run(MemberFunctionApplication.class, args);

}

@Bean

public Function<HealthFirstMember, HealthFirstMember> members() {

return member -> {

member.setCoverage(HealthFirstMember.Coverage.MEDICAL);

return member;

};

}

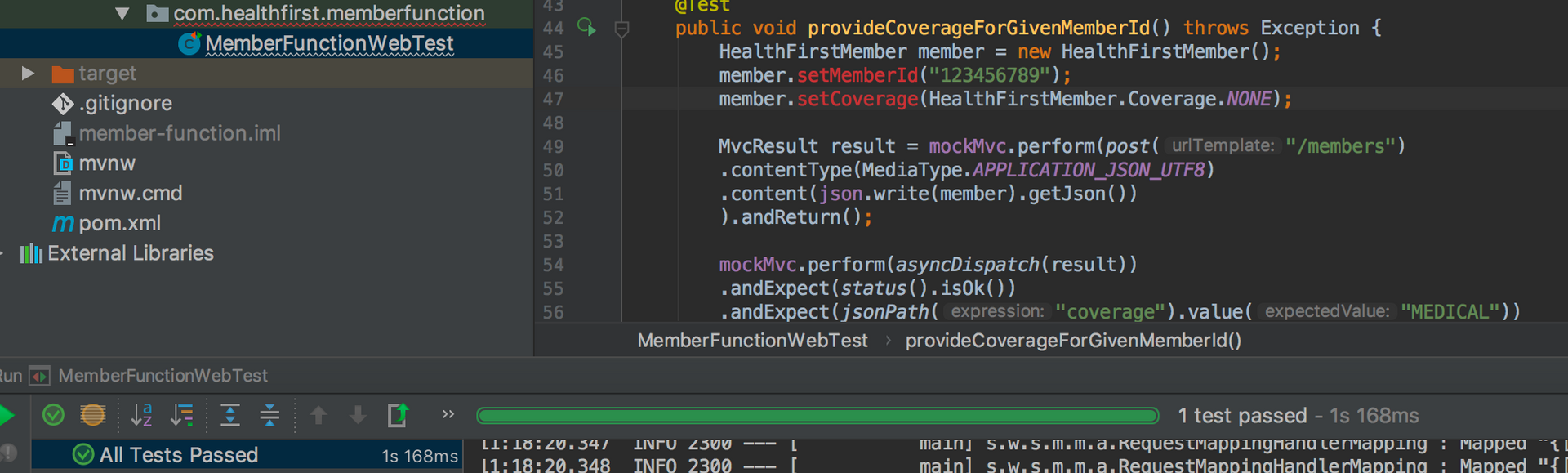

Now, if you run the test-case it should pass.

Contract Generation

Now we have a passing test-case and implementation. We are ready to generate a contract and stubs out of it.

Lets re-visit the test-case to achieve this.

Lets add following annotation so Rest Docs can generate snippets.

@AutoConfigureRestDocs(outputDir = "target/snippets") Then, we can call WireMockRestDocs.verify() method to register and check request/response. Then call the .stub() to store reqeust/response stubs.

mockMvc.perform(asyncDispatch(result))

  .andExpect(status().isOk())

  .andExpect(jsonPath("coverage").value("MEDICAL"))

  .andDo(WireMockRestDocs.verify().jsonPath("$.memberId")

  .contentType(MediaType.APPLICATION_JSON_UTF8).stub("healthfirst-member-check")) Finally, we call SpringCloudContractRestDocs.dslContract() by passing it to MockMvcRestDocumentation.document() to generate the DSL contract.

After, all the above steps the completed test-case looks like this.

public void provideCoverageForGivenMemberId() throws Exception {

  HealthFirstMember member = new HealthFirstMember();

  member.setMemberId("123456789");

  member.setCoverage(HealthFirstMember.Coverage.NONE);

  MvcResult result = mockMvc.perform(post("/members")

  .contentType(MediaType.APPLICATION_JSON_UTF8)

  .content(json.write(member).getJson())

  ).andReturn();

  mockMvc.perform(asyncDispatch(result))

  .andExpect(status().isOk())

  .andExpect(jsonPath("coverage").value("MEDICAL"))

  .andDo(WireMockRestDocs.verify().jsonPath("$.memberId")

  .contentType(MediaType.APPLICATION_JSON_UTF8).stub("healthfirst-member-check"))

  .andDo(MockMvcRestDocumentation.document("healthfirst-member-check",

  SpringCloudContractRestDocs.dslContract()));

  } Now, run

$mvn clean install

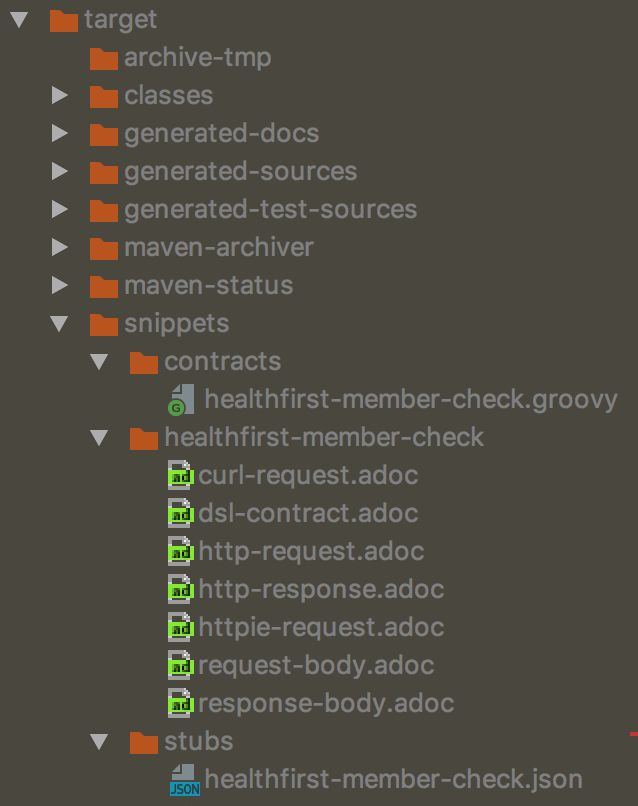

and check the target folder. Generated snippets, docs, json stub, and dsl groovy contract should be available under snippets folder.New Paragraph

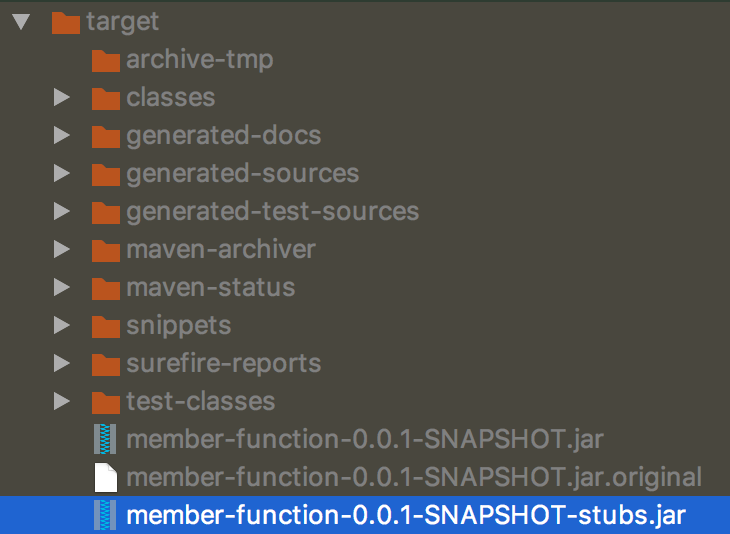

The stubs.jar is installed to local Maven repository. Which serves as the contract and shared with consuming application.New Paragraph

Microserivce - Doctor-Office - (Contract Consumer)

Lets implement this consuming application a simple Spring boot service with a simple REST service. This application calls our Nanoservice Member-Function above to check a member’s coverage.

As we are doing TDD and offline development we need code against to the shared contract.

Setup

We need following dependencies in our pom.xml to start with.

We are going to write a REST controller we need spring-boot-starter-web.

<dependency>

<groupId>org.springframework.boot</groupId>

<artifactId>spring-boot-starter-web</artifactId>

</dependency>

To call the Health Insurance company’s Member-Function we can use either RestTemplate or Feign. Lets use Feign. So, we need Feign dependency for defining a Feign Client Interface

<dependency>

<groupId>org.springframework.cloud</groupId>

<artifactId>spring-cloud-starter-openfeign</artifactId>

</dependency>

Now, we need contract stub runner to run the stub shared by Health Insurance company.

<dependency>

<groupId>org.springframework.cloud</groupId>

<artifactId>spring-cloud-starter-contract-stub-runner</artifactId>

</dependency>

Finally, we need the Member-Function stub dependency listed as dependency. Following dependency gets the -stubs.jar which we installed to local maven repository before.

<dependency>

<groupId>com.healthfirst</groupId>

<artifactId>member-function</artifactId>

<classifier>stubs</classifier>

<version>0.0.1-SNAPSHOT</version>

<scope>test</scope>

<exclusions>

<exclusion>

<groupId>*</groupId>

<artifactId>*</artifactId>

</exclusion>

</exclusions>

</dependency>

TDD

Lets write a failing test-case for the REST controller. We use MockMvc to call the controller which I am going to describe in a bit.

So, we invoke the controller by passing in a Appointment object. We need Firstname, Lastname, and memberId.

After invoking the Mock service we check if the appointment is CONFIRMED to pass the test-case.

@Test

public void scheduleAppointmentWhenPatientHasCoverage() throws Exception {

Appointment appointment = new Appointment();

appointment.setFirstName("Madhu");

appointment.setLastName("Sambangi");

appointment.setMemberId("123456789");

appointment.setDateOfBirth("01/01/2018");

mockMvc.perform(post("/api/v1/appointments")

.contentType(MediaType.APPLICATION_JSON_UTF8)

.content(objectMapper.writeValueAsString(appointment))

.accept(MediaType.APPLICATION_JSON_UTF8))

.andDo(print()).andExpect(status().isOk())

.andExpect(jsonPath("status").value("CONFIRMED"));

}

We will revisit the test-case when we are ready to generate contracts and docs.

Appointments REST Service

We need the controller implemented to pass the test-case. Also, inject the HealthFirstService Feign client so that it can call Member-Function.

@RestController

@RequestMapping("api/v1")

public class PatientController {

private HealthFirstService healthFirstService;

public PatientController(HealthFirstService healthFirstService) {

this.healthFirstService = healthFirstService;

}

@PostMapping("/appointments")

public AppointmentResponse appointments(@RequestBody Appointment appointment) {

AppointmentResponse response = new AppointmentResponse();

HealthFirstMember member = new HealthFirstMember();

member.setMemberId(appointment.getMemberId());

member = healthFirstService.verifyCoverage(member);

if (member.getCoverage() == HealthFirstMember.Coverage.MEDICAL) {

response.setStatus(AppointmentResponse.AppointmentStatus.CONFIRMED);

}

return response;

}

}

Feign Client to call Member Function

And the Feigin client to call the Health Insurance’s Memebr-Function service.

@FeignClient(name = "HealthFirstService",

  url = "http://localhost:8080", fallback = HealthFirstService.HealthFirstServiceFallback.class)

public interface HealthFirstService {

  @RequestMapping(method = RequestMethod.POST, path = "/members")

  @Headers("Accept:application/json;charset=UTF-8")

  HealthFirstMember verifyCoverage(@RequestBody HealthFirstMember member);

  @Component

  class HealthFirstServiceFallback implements HealthFirstService {

  @Override

  public HealthFirstMember verifyCoverage(@RequestBody HealthFirstMember member) {

  member.setCoverage(HealthFirstMember.Coverage.NONE);

  return member;

  }

  }

} Now, if you run the test-case it still fails complaining ‘Connection Refused’ error. Because Feign client tries to call the Member-Function at http://localhost:8080. We haven’t configured the stub runner in the test case to mock the Member-Function using the contract yet.

Stubs from Member-Function Contract

Lets re-visit the test-case to configure the stub so that Feign client will work.

Lets add following annotation in Test class so the stub will run at localhost port 8080.

@AutoConfigureStubRunner(ids = "com.healthfirst:member-function:+:stubs:8080", stubsMode = StubRunnerProperties.StubsMode.LOCAL)

Appointments Test

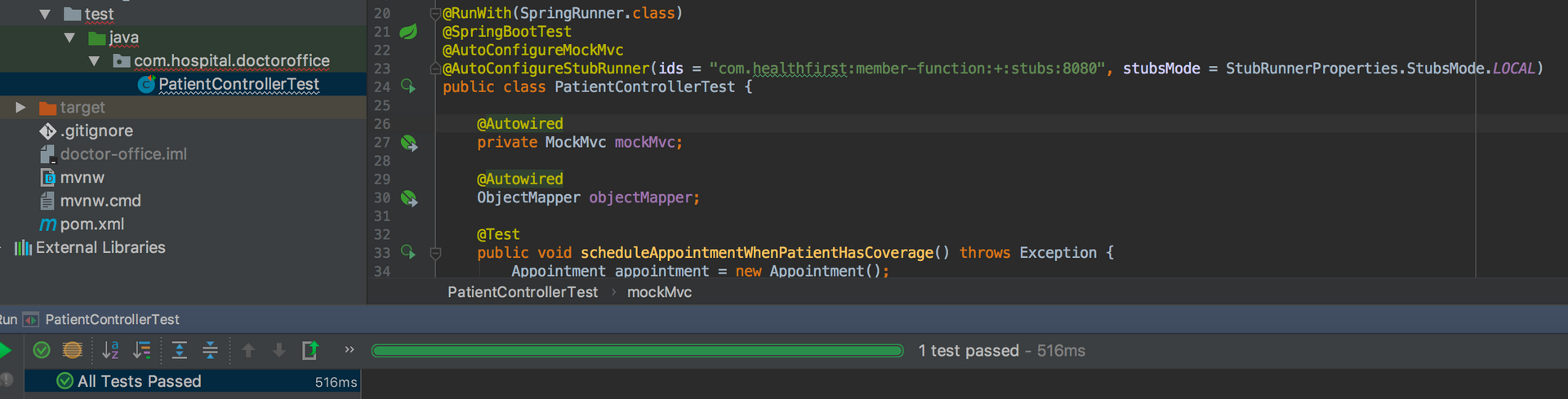

Now the test case passes covering end-to-end testing.

• Calling the appointment REST controller First

MockHttpServletRequest:

  HTTP Method = POST

  Request URI = /api/v1/appointments

  Parameters = {}

  Headers = {Content-Type=[application/json;charset=UTF-8], Accept=[application/json;charset=UTF-8]}

  Body = {"firstName":"Madhu","lastName":"Sambangi","memberId":"123456789","dateOfBirth":"01/01/2018"}

  Session Attrs = {}

Handler:

  Type = com.hospital.doctoroffice.PatientController

  Method = public com.hospital.doctoroffice.AppointmentResponse com.hospital.doctoroffice.PatientController.appointments(com.hospital.doctoroffice.Appointment)

• Which calls the Feign client for member’s coverage.

127.0.0.1 - POST /members

User-Agent: [Java/1.8.0_131]

Connection: [keep-alive]

Host: [localhost:8080]

Accept: [*/*]

Content-Length: [40]

Content-Type: [application/json;charset=UTF-8]

{"memberId":"123456789","coverage":null}

• Feign client calls the stubbed Health Insurance’s Member-Function and gets the member’s coverage as per the contract.

Matched response definition:

{

  "status" : 200,

  "body" : "{\"memberId\":\"123456789\",\"coverage\":\"MEDICAL\"}",

  "headers" : {

  "Content-Type" : "application/json;charset=UTF-8"

  }

}

• PatientController checks the coverage and returns CONFIRMED if the coverage is MEDICAL.

MockHttpServletResponse:

  Status = 200

  Error message = null

  Headers = {Content-Type=[application/json;charset=UTF-8]}

  Content type = application/json;charset=UTF-8

  Body = {"status":"CONFIRMED"}

  Forwarded URL = null

  Redirected URL = null

  Cookies = []

Finally, the test case passes if the appointment status is CONFIRMED.New Paragraph

Summary

This article attempts to demonstrate how powerful is Test Driven Development & Consumer-Driven-Contract when there is a dependency on an internal/external service. If there is a mix of microservices and nanoservices this approach really boosts developer productivity to produce quality testable code.

Please go over the Resources & References section below to learn more of the various pieces of the Spring Framework I used in the sample application, also to understand more about the keywords like microservices, nanoservices, and serverless.
